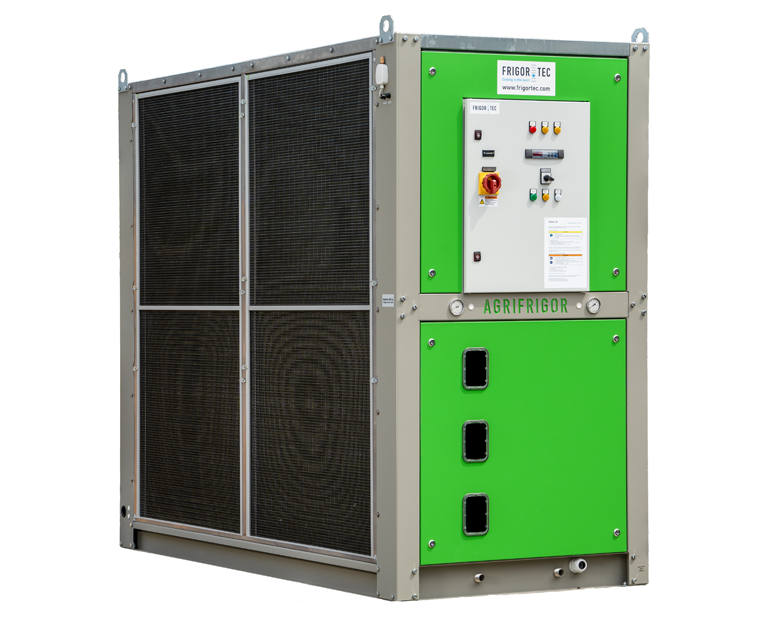

AGRIFRIGOR™ Dehumidifiers – Heat pumps

With an AGRIFRIGOR™ dehumidifier air is conditioned for drying hay. The process is particularly economical and effective by using a heat pump. This is possible because the evaporator and the condenser are used in this process. Hay in the best quality produce good milk & good meat; the health of the animals is significantly improved.

Product overview

AGRIFRIGOR™HT 50

  • Hay box dimension (m2): up to 50
  • Dehumidifying operation (m3/s): 3,0 - 5,5

AGRIFRIGOR™HT 60

  • Hay box dimension (m2): up to 75
  • Dehumidifying operation (m3/s): 4,0 - 6,7

AGRIFRIGOR™HT 75

  • Hay box dimension (m2): up to 100
  • Dehumidifying operation (m3/s): 5,0 - 8,5

AGRIFRIGOR™HT 100

  • Hay box dimension (m2): up to 125
  • Dehumidifying operation (m3/s): 6,5 - 11,0

AGRIFRIGOR™HT 125

  • Hay box dimension (m2): up to 150
  • Dehumidifying operation (m3/s): 8,0 - 14,0

AGRIFRIGOR™HT 150

  • Hay box dimension (m2): up to 200
  • Dehumidifying operation (m3/s): 9,5 - 16,5

AGRIFRIGOR™HT 200

  • Hay box dimension (m2): up to 250
  • Dehumidifying operation (m3/s): 13,4 - 22,0

AGRIFRIGOR™HT 250

  • Hay box dimension (m2): up to 300
  • Dehumidifying operation (m3/s): 14,5 - 25,0

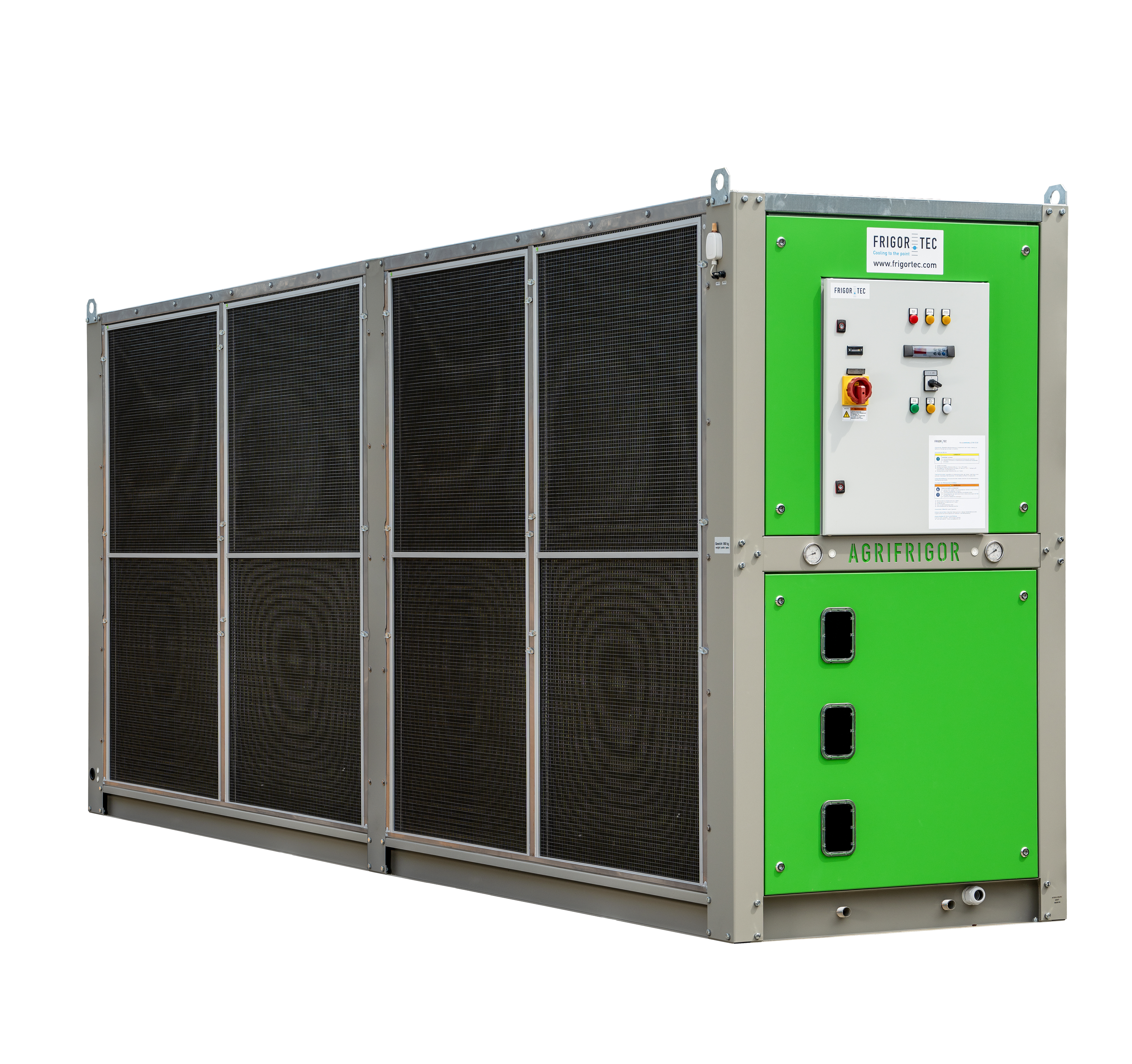

AGRIFRIGOR™HT 300

  • Hay box dimension (m2): up to 350
  • Dehumidifying operation (m3/s): 19,0 - 33,0

AGRIFRIGOR™HT 400

  • Hay box dimension (m2): up to 400
  • Dehumidifying operation (m3/s): 26,8 - 44,0

AGRIFRIGOR™HT 500

  • Hay box dimension (m2): up to 500
  • Dehumidifying operation (m3/s): 29,0 - 50,0

AGRIFRIGOR™

HT 50

HT 60

HT 75

HT 100

HT 125

HT 150

HT 200

HT 250

HT 300

HT 400

HT 500

Hay box dimensionup to 50 m²up to 75 m²up to 100 m²up to 125 m²up to 150 m²up to 200 m²up to 250 m²up to 300 m²up to 350 m²up to 400 m²up to 500 m²
ELECTRICAL DATA
Max. current consumption24 A24 A28 A32 A42 A55 A63 A95 A110 A125 A190 A
Electrical connection12/32 kW/A12/32 kW/A15/32 kW/A18/32 kW/A25/50 kW/A30/63 kW/A40/63 kW/A45/100 kW/A60/125 kW/A80/125 kW/A90/250 kW/A
SUITABLE FOR AIR VOLUME
Dehumidifying operation3,0 - 5,5 m³/s4.0 - 6.7 m³/s5.0 - 9.5 m³/s6.5 - 11.0 m³/s8.0 - 14.0 m³/s9.5 - 14.5 m³/s13,4 - 22,0 m³/s14.5 - 25.0 m³/s19.0 - 33.0 m³/s26.8 - 44.0 m³/s29.0 - 50.0 m³/s
Ambient air operation max.8,0 m³/s11.0 m³/s13.0 m³/s17.0 m³/s20.0 m³/s25.0 m³/s33,0 m³/s38.0 m³/s50.0 m³/s64.0 m³/s76.0 m³/s
Dimensions2.100 x 1.150 x 1.900 mm (L x W x H)2.100 x 1150 x 1.900 mm (L x W x H)2.100 x 1150 x 1.900 mm (L x W x H)2.500 x 1.250 x 2.000 mm (L x W x H)2.700 x 1.250 x 2.200 mm (L x W x H)2.900 x 1.250 x 2.400 mm (L x W x H)3.600 x 1.250 x 2.400 mm (L x W x H)3.900 x 1.350 x 2.500 mm (L x W x H)5.800 x 1.250 x 2.400 mm (L x W x H)7.200 x 1.250 x 2.400 mm (L x W x H)7.800 x 1.350 x 2.500 mm (L x W x H)
Weight800 kg850 kg850 kg900 kg1.000 kg1.200 kg1.300 kg1.600 kg2.400 kg2.600 kg3.200 kg

Product description

Handling and operation

  • Simple, convenient operation by fully-automatic control
  • Quick weather-dependent reaction by temperature and humidity sensors
  • Icing problems prevented by a continuous system monitoring and the integrated HYGROTHERM™ circuitry
  • Low risk of soiling due to wide blade spacing of the heat exchanger
  • Easy to clean with removable, large filters with quick-release fasteners

Energy and environmental balance

  • Economical solution due to low power consumption
  • With environmentally friendly safety refrigerant without CFC or HCFC
  • Energy-efficient models with frequency control
  • Operating hours counter / Indicator light

Workmanship and quality

  • Robust industrial construction provides long service live
  • Soundproofed fans and compressors
  • Effective large-area coarse-dust filters – easy to clean
  • Full enclosure with quick-release fasteners
  • Differential pressure sensor, hay box
  • Fully automatic control
  • Temperature and humidity sensors
  • Vibration decoupling
  • Coated heat exchanger as corrosion protection
  • Additional tray for cleaning / Drip tray
  • Remote monitoring / Alarm modem
  • Air flap motor drives
  • Pressure display
  • Quality inspection with trial run at factory

Options

  • Controller with AGRICONTROL Siemens S7 DDC
  • Individual controller variants
  • Remote diagnosis
  • Generation of operational documentation

Know-How

Since 1963 we produce customised solutions for agricultural engineering and we have acquired extensive expertise in all aspects of all topics. We are glad to share our expertise with you.

Technical hay drying and its advantages

Designed to meet requirements as the basis for economical hay drying

Quality in quantity – professional hay and plant drying

How hay quality affects animal health

Drying hay successfully: AGRIFRIGORTM

  • Experts in agricultural engineering for more than 50 years
  • Advance in knowledge thanks to close contacts to institutes, universities and the dialogue with our customers
  • Innovational strength by modern, forward thinking product solutions
  • Utmost individuality by the modular system

Aldo discover

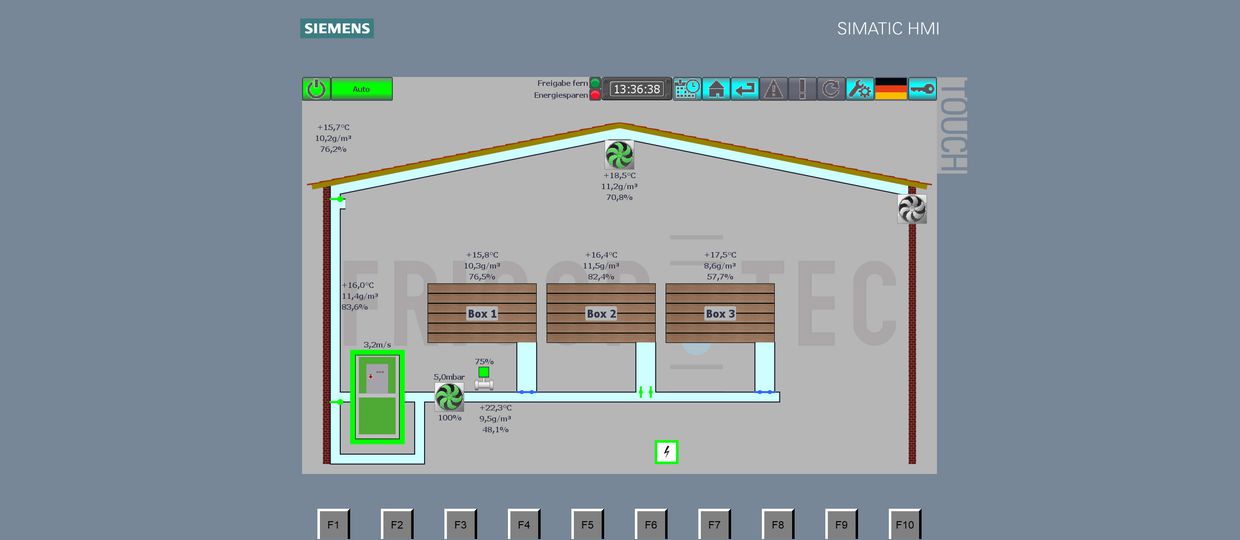

AGRICONTROL Siemens S7

  • Individual control of all switching operations
  • Screen display of the plant status
  • Ideal when employing several drying boxes
  • Remote data transmission possible via modem

Arrange a consultation appointment

Our experts will be happy to advise you on the planning and implementation of your projects. Together we will find a perfect customised solution.
