Overview of all CRANEFRIGOR™ Crane-cooling-unit units

For crane air conditioning in heat plants

CRANEFRIGOR™TB

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 7,0 kW
  • Temperature range: -25 °C to +85 °C
Cooling crane cabins

CRANEFRIGOR™TC

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 12,5 kW
  • Temperature range: -25 °C to +85 °C
Unit for cooling crane electronics

CRANEFRIGOR™TD

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 24,5 kW
  • Temperature range: -25 °C to +85 °C
Equipment for crane cabin cooling

CRANEFRIGOR™TF

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 36,5 kW
  • Temperature range: -25 °C to +85 °C
Correctly cooling crane cabins

CRANEFRIGOR™TH

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 55,5 kW
  • Temperature range: -25 °C to +85 °C
Crane cooling unit for heat plants

CRANEFRIGOR™OC02

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 3,5 kW
  • Temperature range: -25 °C to +60 °C
Cooling, heating, dehumidifying crane cabins

CRANEFRIGOR™OC07

Data sheet
  • Installation: Wall
  • Nominal cooling capacity: up to 6,6 kW
  • Temperature range: -25 °C to +75 °C
Cooling at steel mills, foundries, and hot rolling plants

CRANEFRIGOR™TX

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 6,4 kW
  • Temperature range: -25 °C to +80 °C
Units for crane cooling for harbour facilities

CRANEFRIGOR™TW

Data sheet
  • Installation: Roof, Remote
  • Nominal cooling capacity: up to 4,6 kW
  • Temperature range: -25 °C to +80 °C
Crane cooling units for container terminals and harbours

CRANEFRIGOR™VX

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 6,4 kW
  • Temperature range: -25 °C to +85 °C
Units for control room cooling and control cabinet cooling

CRANEFRIGOR™VB

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 7,0 kW
  • Temperature range: -25 °C to +85 °C
Crane cooling units for protecting the control electronics

CRANEFRIGOR™VC

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 12,5 kW
  • Temperature range: -25 °C to +85 °C
Control cabinet and crane cooling

CRANEFRIGOR™VD

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 24,5 kW
  • Temperature range: -25 °C to +85 °C
Successfully cooling the control room

CRANEFRIGOR™VF

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 36,5 kW
  • Temperature range: -25 °C to +85 °C
Properly cooling the crane cabin

CRANEFRIGOR™VH

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 55,5 kW
  • Temperature range: -25 °C to +85 °C
Crane cooling unit for ceiling and wall mounting

CRANEFRIGOR™WDV

Data sheet
  • Installation: Wall, Ceiling
  • Nominal cooling capacity: up to 6,5 kW
  • Temperature range: -25 °C to +30 °C
Crane cooling unit for mounting on the ceiling

CRANEFRIGOR™DV

Data sheet
  • Installation: Ceiling
  • Nominal cooling capacity: up to 30,0 kW
  • Temperature range: -25 °C to +30 °C
This prevents condensation water from dripping down in cranes.

CRANEFRIGOR™KV1

Data sheet
  • Installation: Wall, Outside, Floor
  • Heating capacity: up to 3,6 kW
  • Temperature range: -25 °C to +70 °C
Device for preventing crane shutdowns due to condensation water

CRANEFRIGOR™KVW

Data sheet
  • Installation: Wall, Outside
  • Heating capacity: up to 3,6 kW
  • Temperature range: -25 °C to +70 °C
Unit for preventing dust and gases from entering into control rooms

CRANEFRIGOR™Filtration System FS10 (self-cleaning)

Data sheet
  • Installation: Outside, Floor
  • Air flow: 0-900 m3/h
Filters particles and gases from the air in control containers

CRANEFRIGOR™Filtration System FT15

Data sheet
  • Installation: Wall, Inside, Outside
  • Air flow: 0-400 m3/h
For heating electronics containers and control rooms

CRANEFRIGOR™Heating device OH07

  • Installation: Inside
  • Heating capacity: up to 7,0 kW
  • Temperature range: -25 °C to +30 °C
Crane air-conditioning unit for safe operation even for high shock loads

CRANEFRIGOR™CK10.h

Data sheet
  • Installation: Roof, Remote
  • Nominal cooling capacity: up to 17,9 kW
  • Temperature range: -25 °C to +85 °C
For the ideal climatic conditions for humans and the crane electronics

CRANEFRIGOR™CC02

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 4,0 kW
  • Temperature range: -25 °C to +70 °C
Technical specifications crane cooling unit CK_12V

CRANEFRIGOR™CK12.v

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 12,3 kW
  • Temperature range: -25 °C to +85 °C
Compact unit for cooling control rooms and containers

CRANEFRIGOR™CK16.h

Data sheet
  • Installation: Roof, Remote
  • Nominal cooling capacity: up to 26,6 kW
  • Temperature range: -25 °C to +85 °C
Crane cooling unit for wall mounting

CRANEFRIGOR™CK18.v

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 19,5 kW
  • Temperature range: -25 °C to +85 °C
Crane cooling device for operation in extreme ambient conditions

CRANEFRIGOR™TY

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 6,4 kW
  • Temperature range: -25 °C to +80 °C

Crane cooling unit for mounting on the roof

CRANEFRIGOR™CK22.h

Data sheet
  • Installation: Roof, Remote
  • Nominal cooling capacity: up to 31,4 kW
  • Temperature range: -25 °C to +85 °C
For a cool crane temperature in heat plants

CRANEFRIGOR™CK24.v

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 24,2 kW
  • Temperature range: -25 °C to +85 °C
Regulating the temperature in control rooms

CRANEFRIGOR™CK30.h

Data sheet
  • Installation: Roof, Remote
  • Nominal cooling capacity: up to 33,5 kW
  • Temperature range: -25 °C to +85 °C
Protect the control and power electronics in cranes

CRANEFRIGOR™CK30.v

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 24,2 kW
  • Temperature range: -25 °C to +85 °C
This is how to protect the electronics in control cabinets

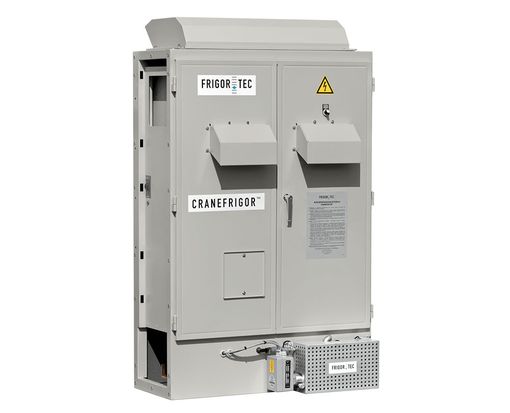

CRANEFRIGOR™CC08

Data sheet
  • Installation: Installation / OEM product
  • Nominal cooling capacity: up to 11,4 kW
  • Temperature range: -25 °C to +70 °C
Compact unit for safe operation at high temperatures

CRANEFRIGOR™CC05

Data sheet
  • Installation: Installation / OEM product
  • Nominal cooling capacity: up to 5,8 kW
  • Temperature range: -25 °C to +70 °C
Cooling, heating, and dehumidification mode for cranes

CRANEFRIGOR™CVD1

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 20,0 kW
  • Temperature range: -25 °C to +54 °C

Know-How

We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.

Über die Wichtigkeit einer leistungsstarken Kranklimatisierung

When a crane air conditioning unit is necessary

Depending on the location, air pollution and extreme temperatures present challenges for operating personnel and crane electronics. Controlled air-conditioning of crane cabins, electrical rooms, electronic containers and switch cabinets is therefore indispensable in many applications.

Krankühlgeräte für extreme Anforderungen

Functionality and design of crane air conditioning units

Safety refrigerants are used in crane air conditioning units to ensure safe operation. Additional components expand the air conditioning systems, e.g. with heating and filter functions. Despite their basically similar design, crane air conditioning units can be divided into compact and split units.

Krankühlgeräte müssen Hochtemperaturanwendungen aushalten

Industry specific requirements for crane air conditioning units

Crane air conditioning units are used in a wide range of industries that have a variety of requirements in terms of functionality and resistance to environmental influences. Design adaptations ensure that the units function reliably even in challenging environments.

Welche Vorteile eine Krankühlung mit sich bringt

Planning, installation and maintenance of crane air conditioning units

Careful planning creates the basis for a crane air-conditioning unit that meets the application-specific requirements in the best possible way. A predictive installation and regular maintenance ensure that the air conditioning unit cools, heats, dehumidifies and filters reliably even under extreme conditions.

Advantages with FrigorTec crane air conditioning units

FrigorTec crane air conditioning units are characterised by the following features:

  • Comfort air conditioning of cabin, switch cabinet and electronics room
  • Safe operation under extreme dust exposure
  • Safe operation under extreme heat load
  • Operation 24/7
  • Extremely robust industrial design
  • High corrosion protection in standard version
  • Adjusted air flow and temperature distribution
  • Multi-stage quality control

Related guarantees:

  • health of the operating staff
  • Increased efficiency of the operating personnel
  • Long service life of electronic components
  • High operational reliability
  • Securing the production process

Arrange a consultation appointment

Our experts will be happy to advise you on the planning and implementation of your projects. Together we will find a perfect customised solution.
