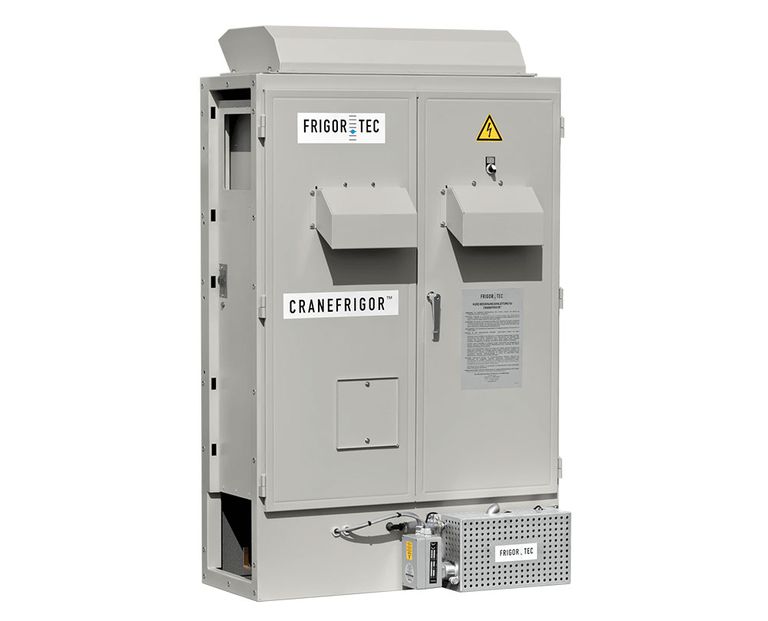

CRANEFRIGOR™ Control cabinets

Our compact CRANEFRIGOR™ control cabinet air conditioners have been developed for the cooling, heating and dehumidification of control cabinets or control cabinet rows. In addition to the optimal protection of the electronics, they impress with their robustness and many optionally available accessory components.

Fields of application

  • Designed for extreme conditions: shock loads, thermal radiation, dust and corrosion
  • Flexible use thanks to numerous mounting options
  • Proven worldwide in various industries

Product overview

CRANEFRIGOR™TB

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 7,0 kW
  • Temperature range: -25 °C to +85 °C

CRANEFRIGOR™TC

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 12,5 kW
  • Temperature range: -25 °C to +85 °C

CRANEFRIGOR™TD

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 24,5 kW
  • Temperature range: -25 °C to +85 °C

CRANEFRIGOR™TF

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 36,5 kW
  • Temperature range: -25 °C to +85 °C

CRANEFRIGOR™TH

Data sheet
  • Installation: Wall, Roof, Remote
  • Nominal cooling capacity: up to 55,5 kW
  • Temperature range: -25 °C to +85 °C

CRANEFRIGOR™TW

Data sheet
  • Installation: Roof, Remote
  • Nominal cooling capacity: up to 4,6 kW
  • Temperature range: -25 °C to +80 °C

CRANEFRIGOR™TY

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 6,4 kW
  • Temperature range: -25 °C to +80 °C

CRANEFRIGOR™CK12.v

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 12,3 kW
  • Temperature range: -25 °C to +85 °C

CRANEFRIGOR™CK18.v

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 19,5 kW
  • Temperature range: -25 °C to +85 °C

CRANEFRIGOR™CK24.v

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 24,2 kW
  • Temperature range: -25 °C to +85 °C

CRANEFRIGOR™CK30.v

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 24,2 kW
  • Temperature range: -25 °C to +85 °C

CRANEFRIGOR™CC02

Data sheet
  • Installation: Wall, Remote
  • Nominal cooling capacity: up to 4,0 kW
  • Temperature range: -25 °C to +70 °C

CRANEFRIGOR™CC05

Data sheet
  • Installation: Installation / OEM product
  • Nominal cooling capacity: up to 5,8 kW
  • Temperature range: -25 °C to +70 °C

CRANEFRIGOR™CC08

Data sheet
  • Installation: Installation / OEM product
  • Nominal cooling capacity: up to 11,4 kW
  • Temperature range: -25 °C to +70 °C

CRANEFRIGOR™

TB

TC

TD

TF

TH

TW

TY

CK12.v

CK18.v

CK24.v

CK30.v

CC02

CC05

CC08

InstallationWall, Roof, RemoteWall, Roof, RemoteWall, Roof, RemoteWall, Roof, RemoteWall, Roof, RemoteRoof, RemoteWall, RemoteWall, RemoteWall, RemoteWall, RemoteWall, RemoteWall, RemoteInstallation / OEM productInstallation / OEM product
Nominal cooling capacityup to 7,0 kWup to 12,5 kWup to 24,5 kWup to 36,5 kWup to 55.5 kWup to 4,6 kWup to 6.4 kWup to 12,3 kWup to 19,5 kWup to 24,2 kWup to 31,3 kWup to 4,0 kWup to 5,8 kWup to 11,4 KW
Air flow1.200 m³/h2.000 m³/h2.500 m³/h4.800 m³/h7000 m³/h800 m³/h1.000 m³/h2.500 m³/h3.500 m³/h4.000 m³/h7.000 m³/h1.500 m³/h1.000 m³/h2.000 m³/h
Heating capacity3,5 kW2,3 – 4,5 kW3 – 9 kW3 – 9 kW3 – 9 kW3,5 kW4 kW6,96,9 kW6,9 kW6,9 kW2,3 kW5,0 kW
Weight
Vertical270 kg380 kg628 kg1.140 kg1.360 kg180 kg410 kg480 kg510 kg630 kg90 kg280 kg450 kg
DIMENSION
Vertical600 x 910 x 1.270 mm (L x B x H)660 x 960 x 1.430 mm (L x B x H)930 x 1.160 x 1.900 mm (L x B x H)1.070 x 1.430 x 2.200 mm (L x B x H)1.260 x 1.760 x 2.520 mm (L x B x H)670 x 530 x 1.600 mm (L x B x H)1.048 x 638 x 1.845 mm (L x B x H)1.148 x 838 x 1.945 mm (L x B x H)1.148 x 838 x 1.945 mm (L x B x H)1.148 x 838 x 1.945 mm (L x B x H)415 x 506 x 1.127 mm (L x B x H)608 x 997 x 1.640 mm (L x B x H)998 x 763 x 2.200 mm (L x B x H)
CO2-EQUIVALENT
R 134a6.006 kg5.720 kg7.865 kg14.300 kg21.450 kg3.003 kg3.289 kg11.440 kg13.585 kg18.590 kg29.212 kg2.002 kg3.146 kg5.720 kg
R 513A2.650 kg2.524 kg3.471 kg6.310 kg9.465 kg1.577 kg1.451 kg5.048 kg5.994 kg8.203 kg12.859 kg883 kg1.388 kg2.524 kg
R 450A2.541 kg2.118 kg3.328 kg6.050 kg9.075 kg1.512 kg1.391 kg4.840 kg5.747 kg7.865 kg12.380 kg1.331 kg2.420 kg

Compact devices for the air conditioning of control cabinets

Handling and operation

  • Optimal climatic conditions for the operating personnel and the electronics
  • Automatic heating operation
  • Dehumidification operation
  • Optimized air flow
  • Filter media / technology adapted to requirements
  • Easy handling
  • Easy maintenance
  • External monitoring and operation possible
  • Operation in a very wide temperature range
  • Effective device protection through integrated protective devices
  • Reliable operation at widely changing temperatures
  • Reliable operation and adjustment with heavily fluctuating loads
  • Simple and thorough cleaning possible

Energy and environmental balance

  • Use of the most modern and environmentally friendly safety refrigerants
  • Economical solution thanks to low power consumption
  • Energy-efficient design thanks to the latest EC motors
  • Further energy savings through optimal flow and temperature distribution

Workmanship and quality

  • Standard flexibly expandable
  • High quality industrial components
  • Components available worldwide
  • Robust industrial design
  • Corrosion protection through special coatings and choice of materials
  • Multi-level quality control
  • Easy maintenance and service
  • CE-compliant design / further certification possible
  • Long-term availability of spare parts

Options

  • Corrosion protection package adapted to the application and specification
  • FrigorTec Smart Control (FSC) - Redundant systems, comfort control, remote control, remote monitoring and connection to an existing control system
  • Combined system CRANEFRIGOR™ + fresh air supply and filter technology
  • Combination system CRANEFRIGOR™ + condensate evaporator
  • Gas warning device
  • Customized version

Know-How

We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.

FrigorTec Cranefrigor Verdampfereinheit

When a crane air conditioning unit is necessary

Functionality and design of crane air conditioning units

Industry specific requirements for crane air conditioning units

Planning, installation and maintenance of crane air conditioning units

Advantages with FrigorTec crane air conditioning units

FrigorTec crane air conditioning units are characterised by the following features:

  • Comfort air conditioning of cabin, switch cabinet and electronics room
  • Safe operation under extreme dust exposure
  • Safe operation under extreme heat load
  • Operation 24/7
  • Extremely robust industrial design
  • High corrosion protection in standard version
  • Adjusted air flow and temperature distribution
  • Multi-stage quality control

Related guarantees:

  • health of the operating staff
  • Increased efficiency of the operating personnel
  • Long service life of electronic components
  • High operational reliability
  • Securing the production process

Product overview

CRANEFRIGOR™KV1

Data sheet
  • Installation: Wall, Outside, Floor
  • Heating capacity: up to 3,6 kW
  • Temperature range: -25 °C to +70 °C

CRANEFRIGOR™KVW

Data sheet
  • Installation: Wall, Outside
  • Heating capacity: up to 3,6 kW
  • Temperature range: -25 °C to +70 °C

CRANEFRIGOR™

KV1

KVW

InstallationWall, Outside, FloorWall, Outside
Heating capacity3,6 kW3,6 kW
Weight
Horizontal25 kg20 kg
DIMENSION
Horizontal550 x 140 x 240 mm (L x B x H)550 x 140 x 240 mm (L x B x H)
CO2-EQUIVALENT

Reliable prevention of dripping condensation water

Product description:

  • Reliable avoidance of dripping condensation water
  • Long service life thanks to the robust industrial design
  • High corrosion resistance due to stainless steel manufacture
  • Closed design to prevent contaminated condensate from dirt particles from the air
  • Prevention of overflow of the condensate container thanks to safety functions and overflow warning
  • High flexibility with connection options for ½ and ¾"
  • Simple assembly thanks to the ready-to-connect structure
  • Easy to maintain due to removable cover
  • Quality control with factory test run
  • Available with its own control (KV1) or control directly via the crane air-conditioning unit in compact design (KVW)

Know-How

We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.

FrigorTec Cranefrigor Verdampfereinheit

When a crane air conditioning unit is necessary

Functionality and design of crane air conditioning units

Industry specific requirements for crane air conditioning units

Planning, installation and maintenance of crane air conditioning units

Advantages with FrigorTec crane air conditioning units

FrigorTec crane air conditioning units are characterised by the following features:

  • Comfort air conditioning of cabin, switch cabinet and electronics room
  • Safe operation under extreme dust exposure
  • Safe operation under extreme heat load
  • Operation 24/7
  • Extremely robust industrial design
  • High corrosion protection in standard version
  • Adjusted air flow and temperature distribution
  • Multi-stage quality control

Related guarantees:

  • health of the operating staff
  • Increased efficiency of the operating personnel
  • Long service life of electronic components
  • High operational reliability
  • Securing the production process

Product overview

CRANEFRIGOR™Filtration System FS10 (self-cleaning)

Data sheet
  • Installation: Outside, Floor
  • Air flow: 0-900 m3/h

CRANEFRIGOR™Filtration System FT15

Data sheet
  • Installation: Wall, Inside, Outside
  • Air flow: 0-400 m3/h

CRANEFRIGOR™

Filtration System FS10 (self-cleaning)

Filtration System FT15

InstallationOutside, FloorWall, Inside, Outside
Air flow1.500 m³/h600 m³/h
Weight
Vertical150 kg35 kg
DIMENSION
CO2-EQUIVALENT

Air purification and overpressure control of control cabinets

Options

  • Air quantity can be regulated continuously
  • Stainless steel housing for increased corrosion protection
  • Various special and secondary filters
  • Individual designs with custom voltages, special coatings, etc.

Product description:

  • Optimal fresh air supply for personnel
  • Prevention of dust penetration, chemical gases and particles
  • Effective filtering of dust and other particles from the air
  • Long service life due to robust industrial design
  • Power supply and control via crane air conditioning unit for combined operation of air conditioning unit and filter system
  • Independent operation of the crane air conditioning unit also possible
  • Easy maintenance and cleaning
  • Quality control with factory trial run
  • FT15 version - ideal for small rooms, control cabinet and crane cabin
  • Simultaneous operation of several FT15 systems in larger rooms, e.g., E-rooms
  • FS10 version with integrated cleaning function - ideal for extreme dust loads
  • Significant reduction of maintenance, filter change and cleaning by using FS10
  • Combined use of FT15 and FS10 systems also possible

Know-How

We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.

FrigorTec Cranefrigor Verdampfereinheit

When a crane air conditioning unit is necessary

Functionality and design of crane air conditioning units

Industry specific requirements for crane air conditioning units

Planning, installation and maintenance of crane air conditioning units

Advantages with FrigorTec crane air conditioning units

FrigorTec crane air conditioning units are characterised by the following features:

  • Comfort air conditioning of cabin, switch cabinet and electronics room
  • Safe operation under extreme dust exposure
  • Safe operation under extreme heat load
  • Operation 24/7
  • Extremely robust industrial design
  • High corrosion protection in standard version
  • Adjusted air flow and temperature distribution
  • Multi-stage quality control

Related guarantees:

  • health of the operating staff
  • Increased efficiency of the operating personnel
  • Long service life of electronic components
  • High operational reliability
  • Securing the production process

Product overview

CRANEFRIGOR™Heating device OH07

  • Installation: Inside
  • Heating capacity: up to 7,0 kW
  • Temperature range: -25 °C to +30 °C

CRANEFRIGOR™

Heating device OH07

InstallationInside
Air flowup to 1.200 m³/h
Heating capacity7,0 kW
Weight
Vertical35 kg
DIMENSION
Vertical493 x 320 x 706 mm (L x B x H)
CO2-EQUIVALENT

Heating of control cabinets

Product description:

  • Robust industrial design
  • Optimal alignment of air output and fan
  • Integrated air filter
  • Remote installation possibility for controller
  • Individual adaptation to the existing design
  • Non-visible implementation in the interior possible
  • Quiet operation through comfort controller
  • Reduction of heating costs through standby function
  • Integrated remote access

Know-How

We make no secret of our decades of experience and know-how in the field of crane air conditioning and are happy to share our knowledge with you. Learn about user-relevant facts and background information.

FrigorTec Cranefrigor Verdampfereinheit

When a crane air conditioning unit is necessary

Functionality and design of crane air conditioning units

Industry specific requirements for crane air conditioning units

Planning, installation and maintenance of crane air conditioning units

Advantages with FrigorTec crane air conditioning units

FrigorTec crane air conditioning units are characterised by the following features:

  • Comfort air conditioning of cabin, switch cabinet and electronics room
  • Safe operation under extreme dust exposure
  • Safe operation under extreme heat load
  • Operation 24/7
  • Extremely robust industrial design
  • High corrosion protection in standard version
  • Adjusted air flow and temperature distribution
  • Multi-stage quality control

Related guarantees:

  • health of the operating staff
  • Increased efficiency of the operating personnel
  • Long service life of electronic components
  • High operational reliability
  • Securing the production process

Aldo discover

Gas warning device

  • Installation: wall (inside)
  • Room monitoring

FrigorTec Smart Control (FSC)

  • Installation: wall (inside)
  • Superordinate control

FrigorTec Controller (FTC)

  • Installation: wall (inside)
  • Control / Thermostat

Arrange a consultation appointment

Our experts will be happy to advise you on the planning and implementation of your projects. Together we will find a perfect customised solution.

Arrange an appointment
Contact
