STANDARDFRIGOR Metal powder dryer POWDRYER™

The POWDRYER™ PD08 metal powder dryer is used to dry inorganic metal powder for the complex additive manufacturing (3D printing) process. It corrects the manufacturer’s fluctuating metal powder qualities, thus optimizing the metal powder’s flowability. It also reduces the number of air inclusions in finished workpieces. Significantly higher material densities are the result.

Fields of application

  • Particularly for metal printing products where maximum strength is required
  • For the printing of alloys of aluminium, titanium, tool steel, etc.
  • Special tools for the metal-processing industry, machine and system engineering, prototype development, and more
  • Aviation, aerospace, and automotive industries, plus medical and dental technology

Product overview

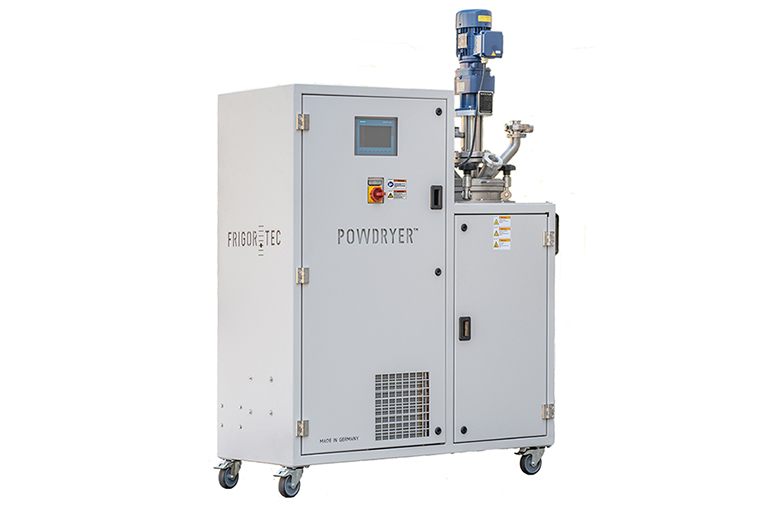

STANDARDFRIGORPOWDRYER™ PD08

Data sheet
  • Sturdy industrial design
  • Safe operation
  • Fully automated operation
  • Fast, easy cleaning
  • Quality assurance via factory test run
  • Made in Germany

STANDARDFRIGOR

POWDRYER™ PD08

Max. permissible ambient temperature43 °C
Operating voltage3 ph / 400 V / 50 Hz
RefrigerantR513A
GWP (global warming potential)631
Capacity0.6 kg
CO2-Äquivalent378.6 kg
Degree of protectionIP54
Electrical supplyTN-S nach IEC 364-3
Dimensions1.410 x 610 x 1.990 mm
Weightapprox. 450 kg

Technical specifications

Industrial-standard turnkey machine:

  • Tank connection DN40 ISO KF
  • Capacity 10 litres ≙ 70 kg for steel
  • Variable-speed stirrer
  • Vacuum unit
  • Cooling unit with condensing unit and brine circuit
  • Integrated humidity and temperature sensor
  • Integrated safety circuit (operation only with closed tank)
  • Vacuum chamber with leak-proof closure of powder to operator
  • Argon unit (optional)

Housing

  • Robust construction
  • Frame primed and powder-coated, RAL 7005
  • Doors primed and powder-coated, RAL 7005
